THE WORLD FIRST DATA ACQUISITION SYSTEM FOR MTB AND MX
BYB Telemetry Motocross Downhill MTB

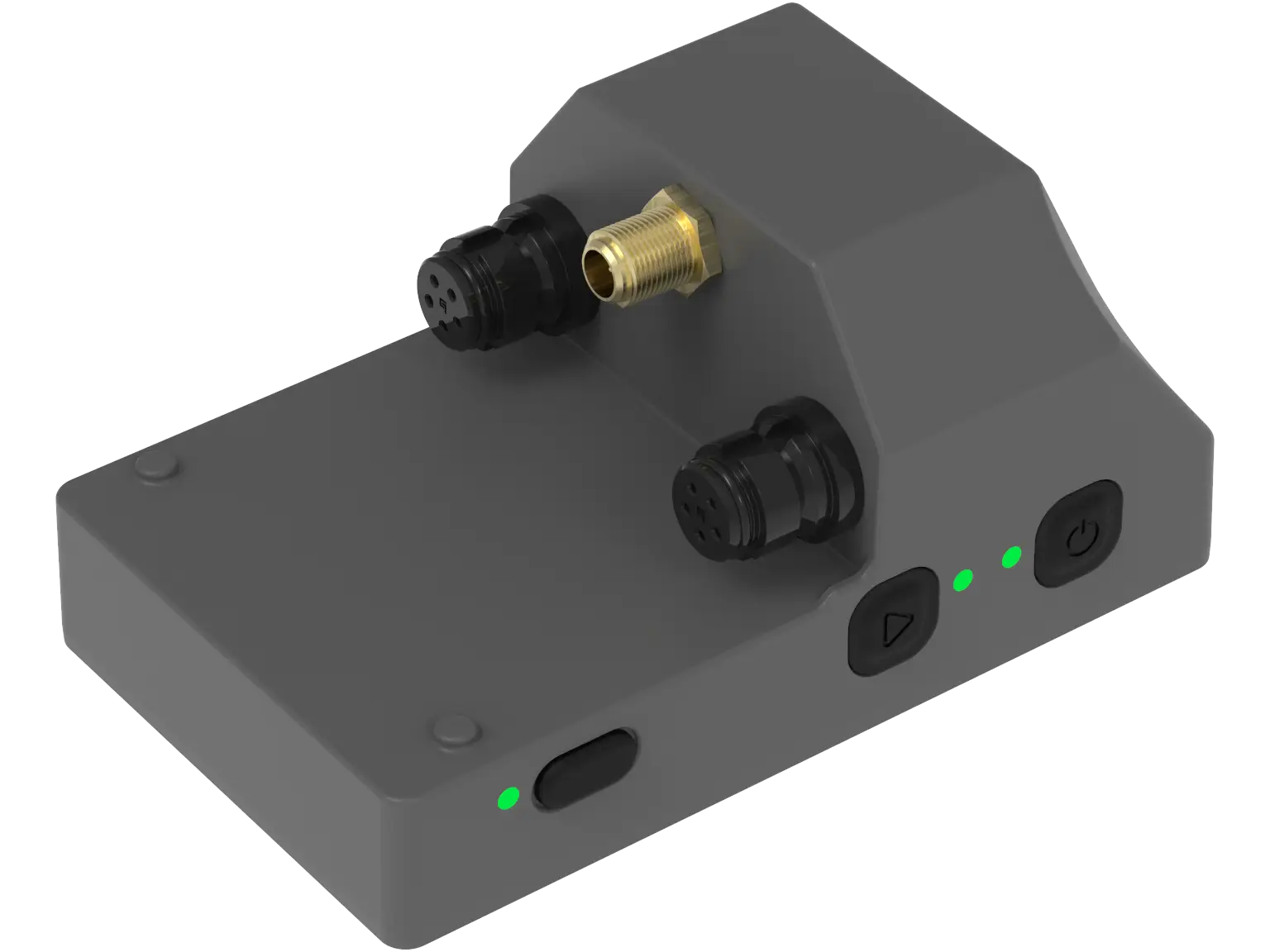

BYB Telemetry acquisition unit

BYB Telemetry detects the motion of the suspension and other dynamic parameters of the MTB while riding, in order to base the setting on quantitative information instead of feelings.

BYB Telemetry Scott DH Factory Florent Payet
HOW BYB TELEMETRY CAN IMPROVE YOUR PERFORMANCE?

Suspension technology has drastically evolved
in the last years, reaching an incredibly high standard
of quality and performance, but also
complication level.

With more tuning parameters available on every suspension system,

finding a proper suspension setup is not a straightforward operation.


Every rider would like to have a perfectly balanced
and smooth bike on a rough or technical section.
In fact,
an optimal setup can make the difference concerning

chronometric feedback and fatigue.

This is true for the professional, but also for the amateurs riders.



These are the benefits you will get when using data instead of feelings.

HOW BYB TELEMETRY WORKS?

Thanks to a set of universal supports, BYB Telemetry can be easily installed on every bike: downhill, enduro, cross country, e-bike and even Motocross bikes in less than 20 minutes.



You can start riding immediately because no calibration is needed.



After your data acquisition sessions, you can directly download your runs to our software & app in order to analyze the data and get the best out of your bike!

BYB Telemetry universal mountings support
SOFTWARE & APP
BYB Telemetry software smartphone app autotuning 2.0.png
SOFTWARE
  • Advanced display and calculations over the acquired metrics

  • GPS tracking

  • %, mm, suspension or wheel travel visualization

  • True leverage ratio interpolation

  • Suspension charts overlay with other data

  • Interval selection with dynamics metrics and averages

  • Position distribution and Velocity distribution

  • Highly-intuitive charts to immediate understanding

  • Comparison between two runs (times and distance)

  • Dedicated space to store settings and notes

  • Auto-tuning function

  • Lifetime and free regular updates

Software & App
APP
  • Fast and easy-to-use device configuration menu

  • Summary of your run

  • Advanced display and calculations on the metric acquired

  • GPS tracking

  • %, mm, suspension or wheel travel visualization

  • Suspension, accelerometer and speed charts

  • Resizable interval selection

  • Position distribution

  • Velocity distribution

  • Dedicated space to store settings and notes

  • Auto-tuning function

  • Lifetime and regular updates

BYB Telemetry smartphone app
STACK VIEW
Stack view.png

The stack view contains dynamically all the information about your run

COMPARISON
BYB Telemetry Run Comparion.png

The comparison lets you interact with different runs on the same track and understand where you need to focus more

POSITION DISTRIBUTION
BYB Telemetry Position Distribution.png

The position distribution shows the overall balance of the bike

VELOCITY DISTRIBUTION
BYB Telemetry Velocity Distribution.png

The velocity distribution shows the dynamic balance of the bike,

both for compression and rebound

LAP MANAGER
BYB Telemetry Lap manager.png

Lap manager to see your best times on open and closed routes

MAP CHARACTERISTICS
BYB Telemetry Leverage.png

Map characteristics about your speed, suspension compression, rebound, shocks and more

AUTO TUNING
BYB Telemetry Auto tuning.png

The auto-tuning provides precise instructions on how to obtain a proper setting

SOFTWARE OVERVIEW

 Watch our tutorials about the PC software on YouTube

DEVICE
BYB Telemetry iOS Android smartphone app
BYB Telemetry smartphone app iOS Android

Connect to the acquisition unit wirelessly

Change the device configuration,

the sampling rate, the BYB sampling mode or switch in seconds to your MX bike

RUNS
BYB Telemetry smartphone app

Download your runs in minutes straight to your phone

BYB Telemetry iphone Android app

Manage your runs and upload them to the Dropbox client

MAP and VALUES
BYB Telemetry map smartphone app
BYB Telemetry summary smartphone app

Navigate trough your route

Consult all the values of your suspension, front axle or rear axle.

LINES and HISTOGRAMS
BYB Telemetry lines smartphone app

Analyze your suspension, brakes, speed & more

BYB Telemetry smartphone app distribution

Easy-to-read and intuitive charts and statistical distributions

AUTO TUNING
BYB Telemetry auto-tuning

Open a run, select your riding level and tune your suspension better (and faster) than ever!

APP OVERVIEW

 Watch our tutorials about the smartphone app on YouTube

MOUNTAINBIKE

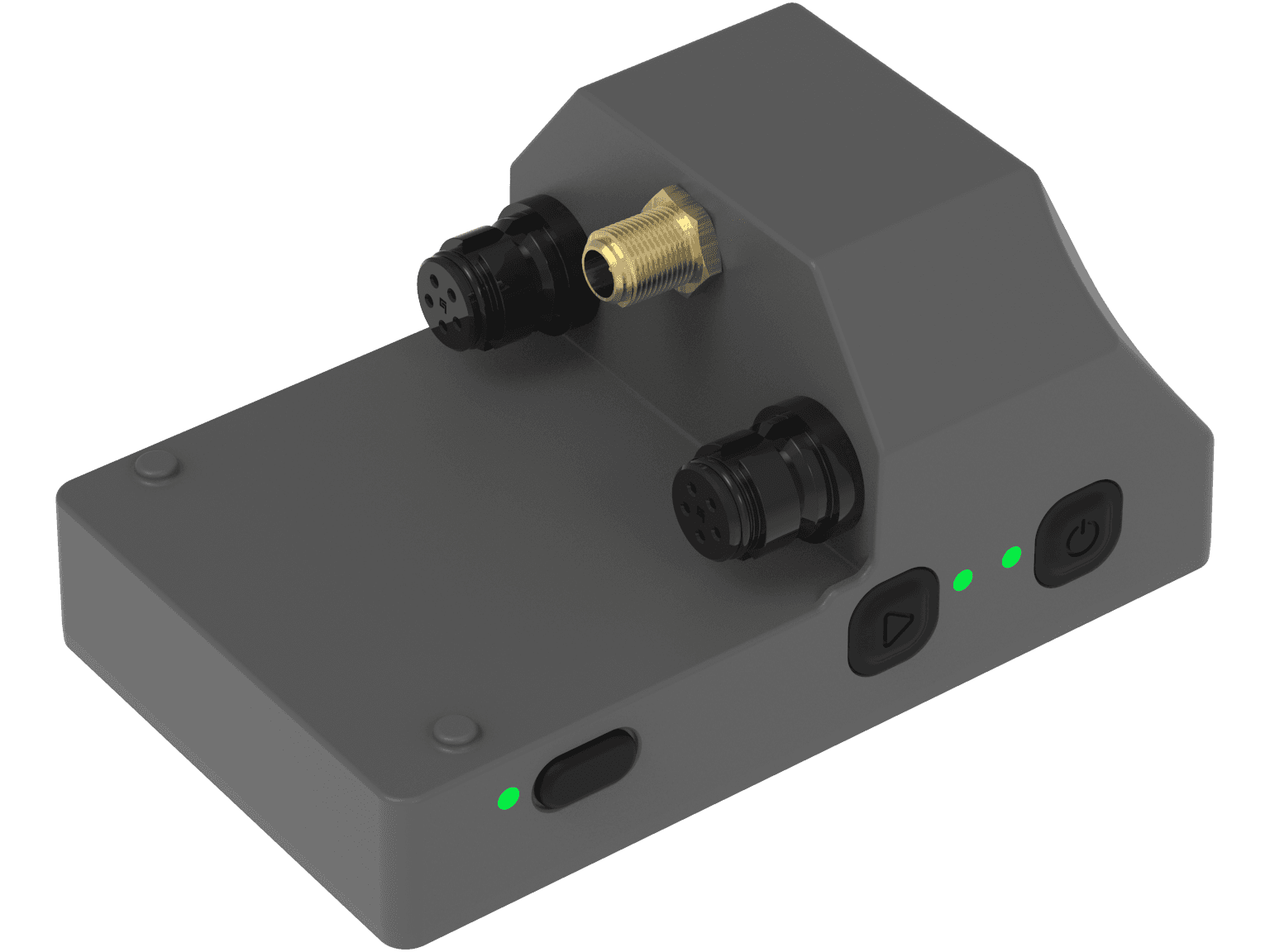

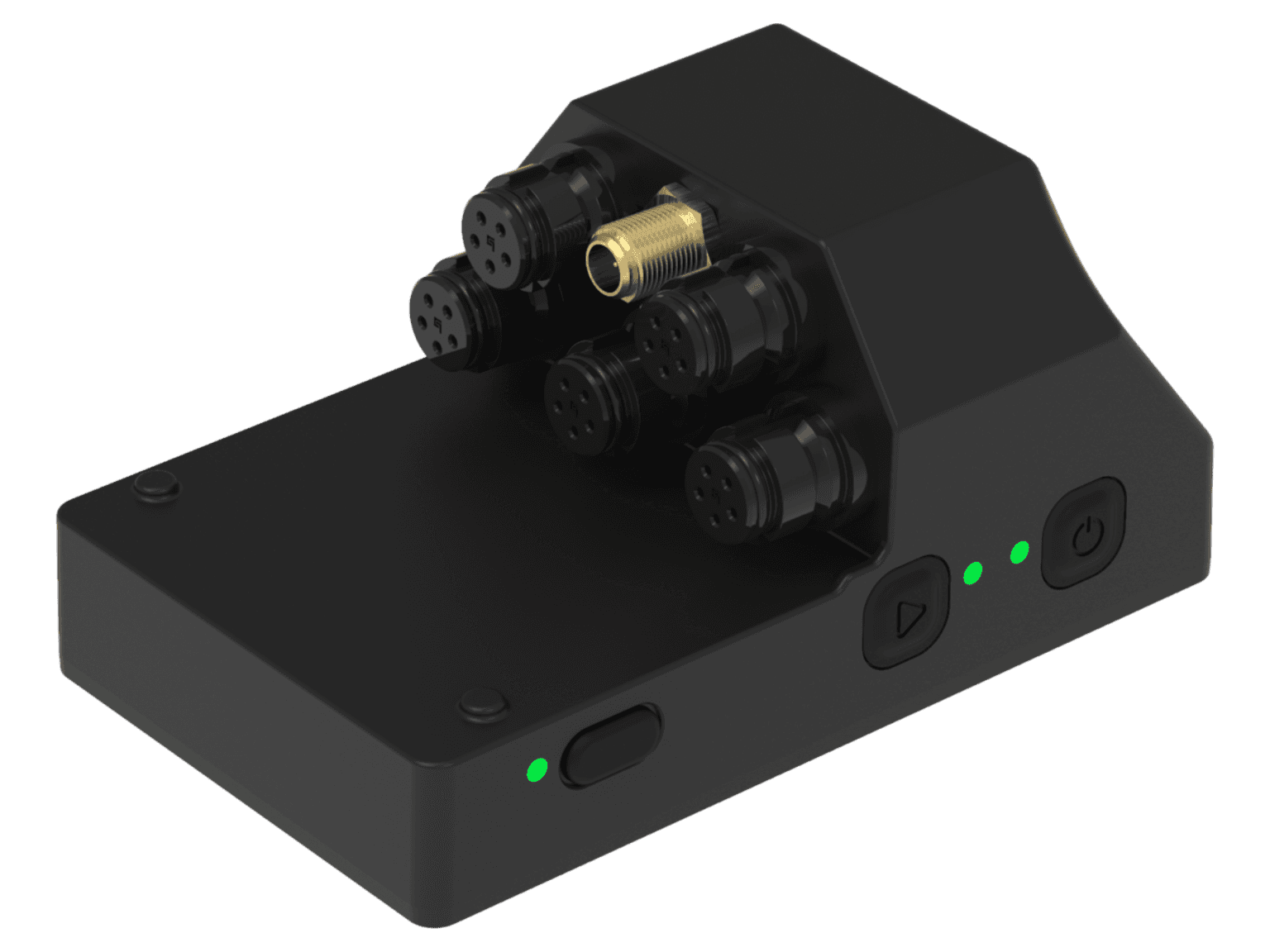

ACQUISITION UNIT
  • 10 analog channels

  • Built-in sensors (GPS, 3-axis accelerometer and gyro)

  • 1000 Hz sampling rate

  • MTB and MX mode

  • Easy-to-use interface

  • On-board wireless connection technology

  • Waterproof anodized aluminum case

  • More than10 hours of continuous sampling

  • 16 GB of storage

  • Made in Italy

Mountainbike
BUILT-IN SENSORS
  • Automotive grade-GPS

  • 3-axis accelerometer

  • 3-axis gyroscope

​

BYB detects the shock and the vibrations at the handlebar plus the spatial orientation of the bike.

​

The GPS is equipped with an external antenna in order to get a strong signal also inside the woods. Precise comparison needs an equally accurate GPS.

BYB Telemetry GPS cockpit handlebar
1000 HZ SAMLING RATE

BYB Telemetry offers 1000 Hz sampling rate for the best accuracy and to capture all the typical high-speed off-road impacts.

AUTOMATIC CALIBRATION
BYB Telemetry suspension sensor

BYB Telemetry performs an automatic zero calibration while riding.

The sensors included in the kit can be used with all forks below 200mm and shock absorbers below 75mm.

SUSPENSION SENSORS
  • Custom 200mm fork sensor

  • Custom 75mm shock sensor

  • Motorsport-grade technology

  • Compact body

  • Auto-alignament universal and removable joints

  • IP65 sealing (with low actuation force)

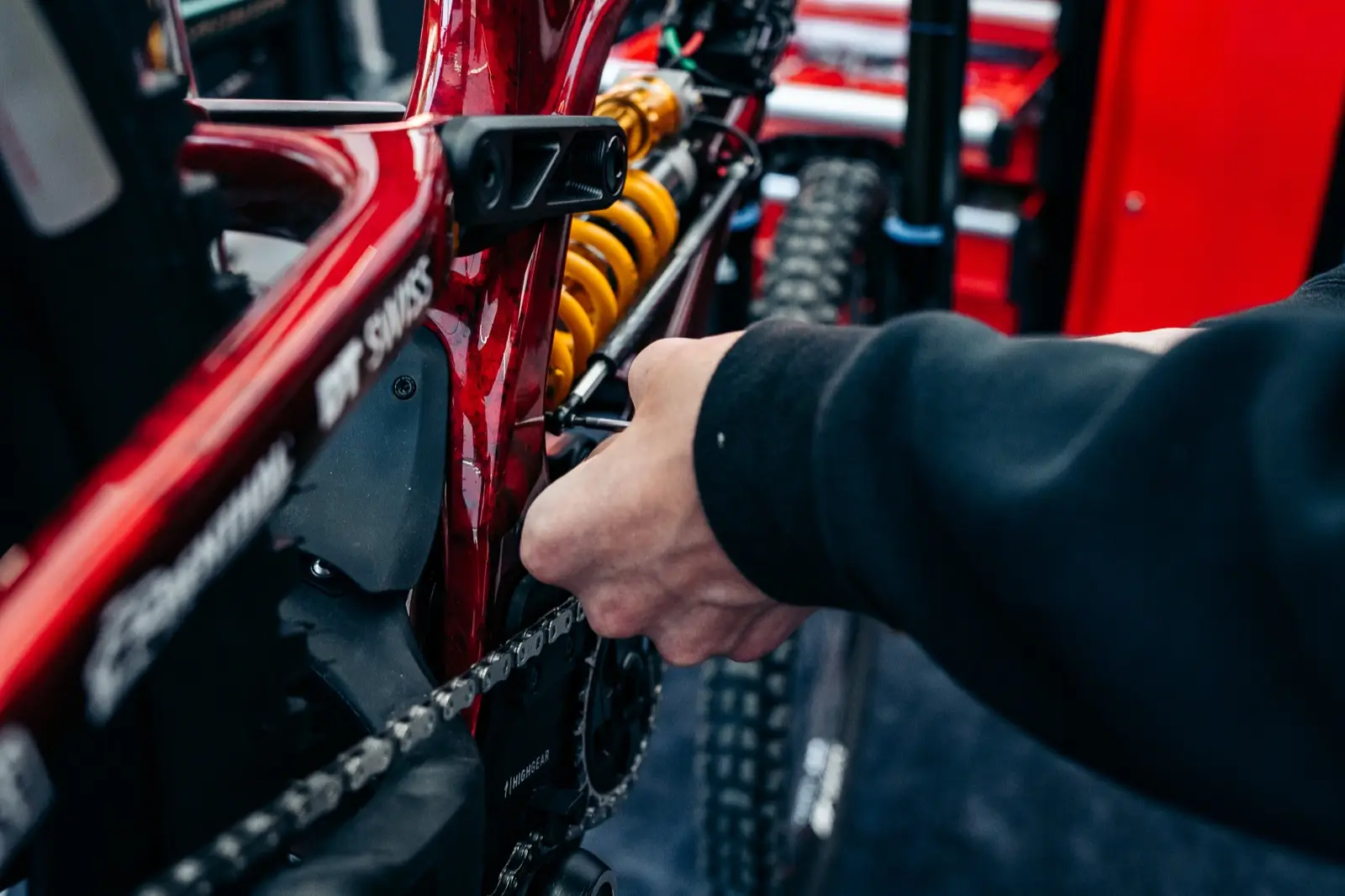

BYB Telemetry rear sensor shock
BRAKE SENSORS
BYB Telemetry brake sensor
SPEED SENSOR
BYB Telemetry speed sensor

The brake sensors are fast to install and don't require opening the hydraulic circuit. They're available in analog and digital versions.

The speed sensor is fast to install and measures the real speed of the bike, regardless of GPS reception.

MOUNTINGS

The kit is provided with a full set of universal mountings:

  • Easy-to-install

  • Installable on air & spring-based suspension

  • Plastic and CNC milled mountings

BYB Telemetry mountings support universal
UNIVERSAL BETWEEN SEVERAL DISCIPLINES
BYB Telemetry Motocross Crosscountry Ebike Downhill
Motocross
MOTOCROSS

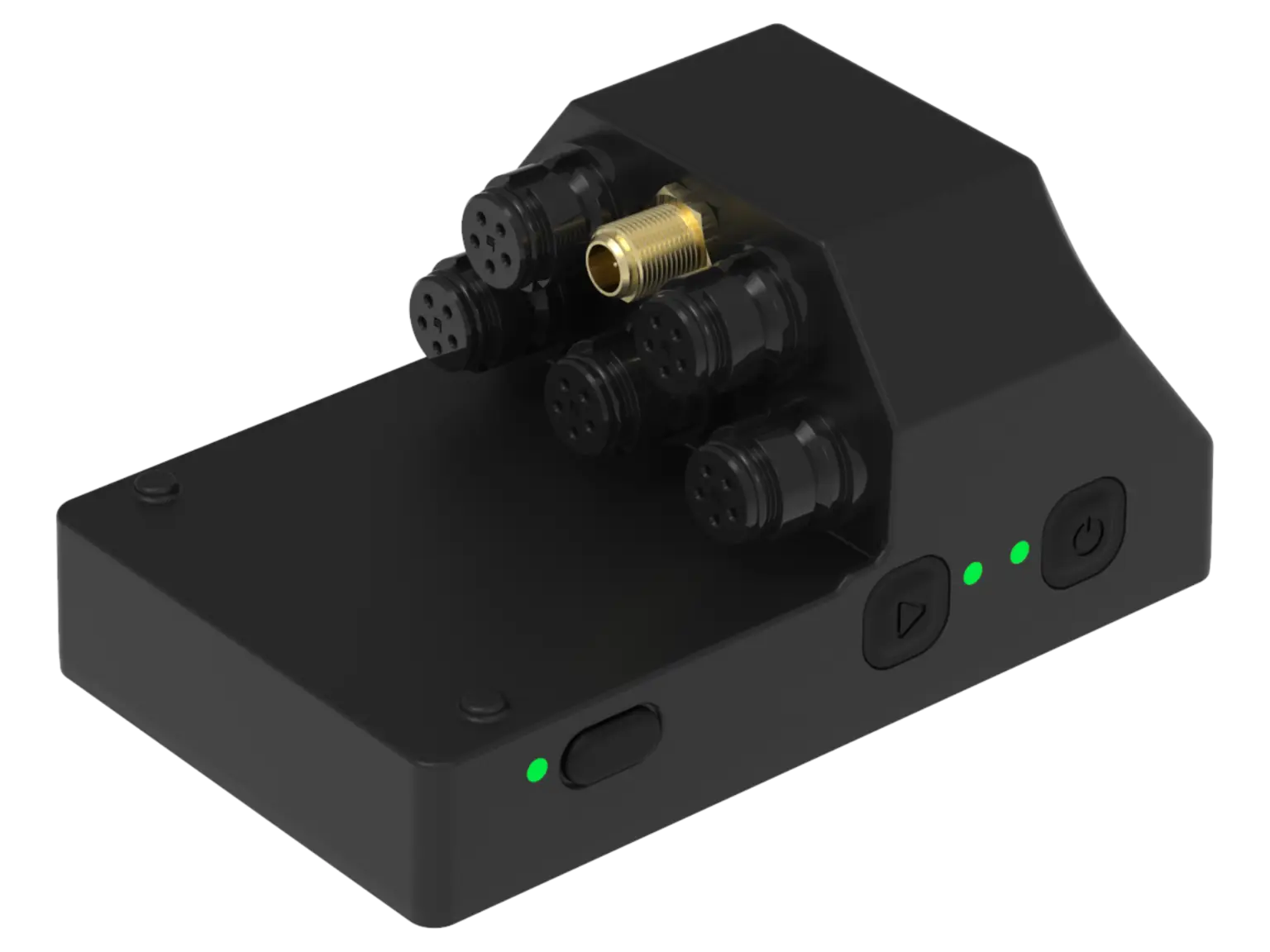

ACQUISITION UNIT
  • 10 analog channels

  • Built-in sensors (GPS, 3-axis accelerometer and gyro)

  • 1000 Hz sampling rate

  • MTB and MX mode

  • Easy-to-use interface

  • On-board wireless connection technology

  • Waterproof anodized aluminum case

  • More than10 hours of continuous sampling

  • 16 GB of storage

  • Made in Italy

BUILT-IN SENSORS
  • Automotive grade-GPS

  • 3-axis accelerometer

  • 3-axis gyroscope

​

BYB detects the shock and the vibrations at the handlebar plus the spatial orientation of the bike.

​

The GPS is equipped with an external antenna in order to get a strong signal also inside the woods. Precise comparison needs an equally accurate GPS.

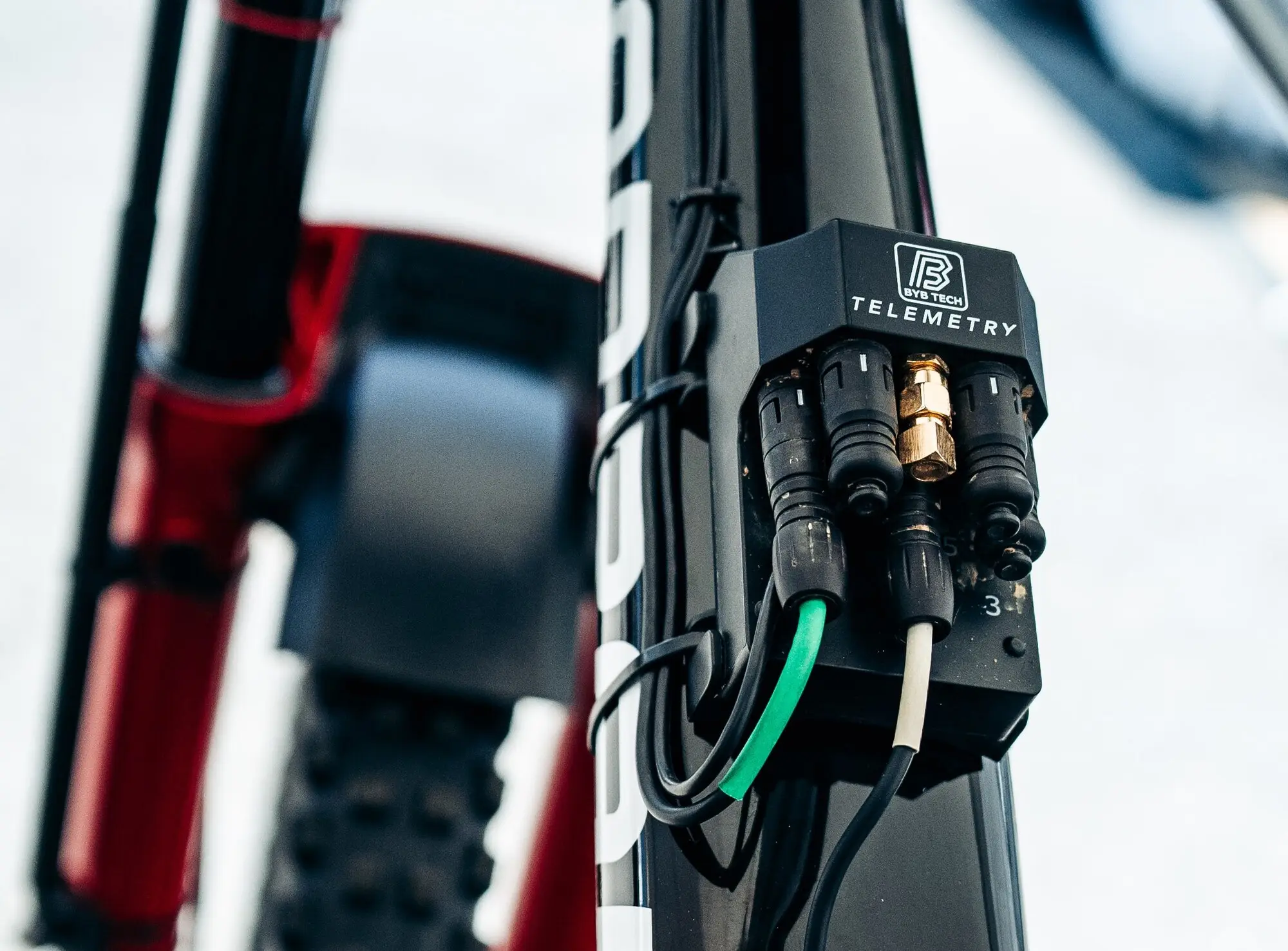

BYB Telemetry data acquisition motocross mx
1000 HZ SAMLING RATE
BYB Telemetry 1000 Hz

BYB Telemetry offers 1000 Hz sampling rate for the best accuracy and to capture all the typical high-speed off-road impacts.

AUTOMATIC CALIBRATION
BYB Telemetry system motocross

BYB Telemetry performs an automatic zero calibration while riding.

The sensors included in the kit can be used with all forks below 200mm and shock absorbers below 75mm.

SUSPENSION SENSORS
  • Custom 200mm fork sensor

  • Custom 75mm shock sensor

  • Motorsport-grade technology

  • Compact body

  • Auto-alignament universal and removable joints

  • IP65 sealing (with low actuation force)

BYB Telemetry motocross sensor
BRAKE SENSORS
BYB Telemetry motocross brake sensor
SPEED SENSOR
BYB Telemetry motocross speed

The brake sensors are fast to install and don't require opening the hydraulic circuit. They're available in analog and digital versions.

The speed sensor is fast to install and measures the real speed of the bike, regardless of GPS reception.

MOUNTINGS

The kit is provided with a full set of universal mountings:

  • Easy-to-install

  • Installable on air & spring-based suspension

  • Plastic and CNC milled mountings

BYB Telemetry motocross universal mountings
UNIVERSAL BETWEEN SEVERAL DISCIPLINES
BYB Telemetry universal disciplines

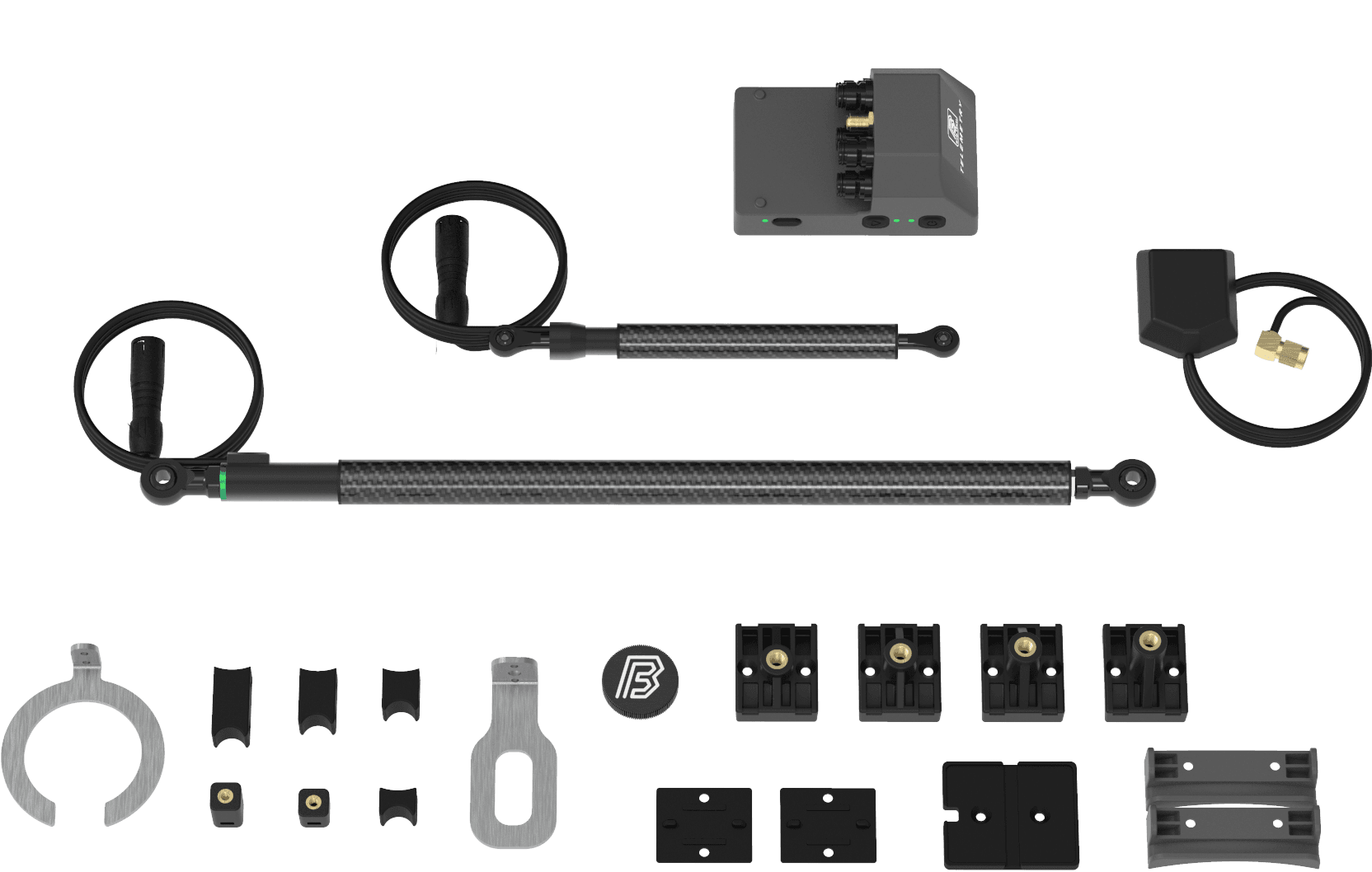

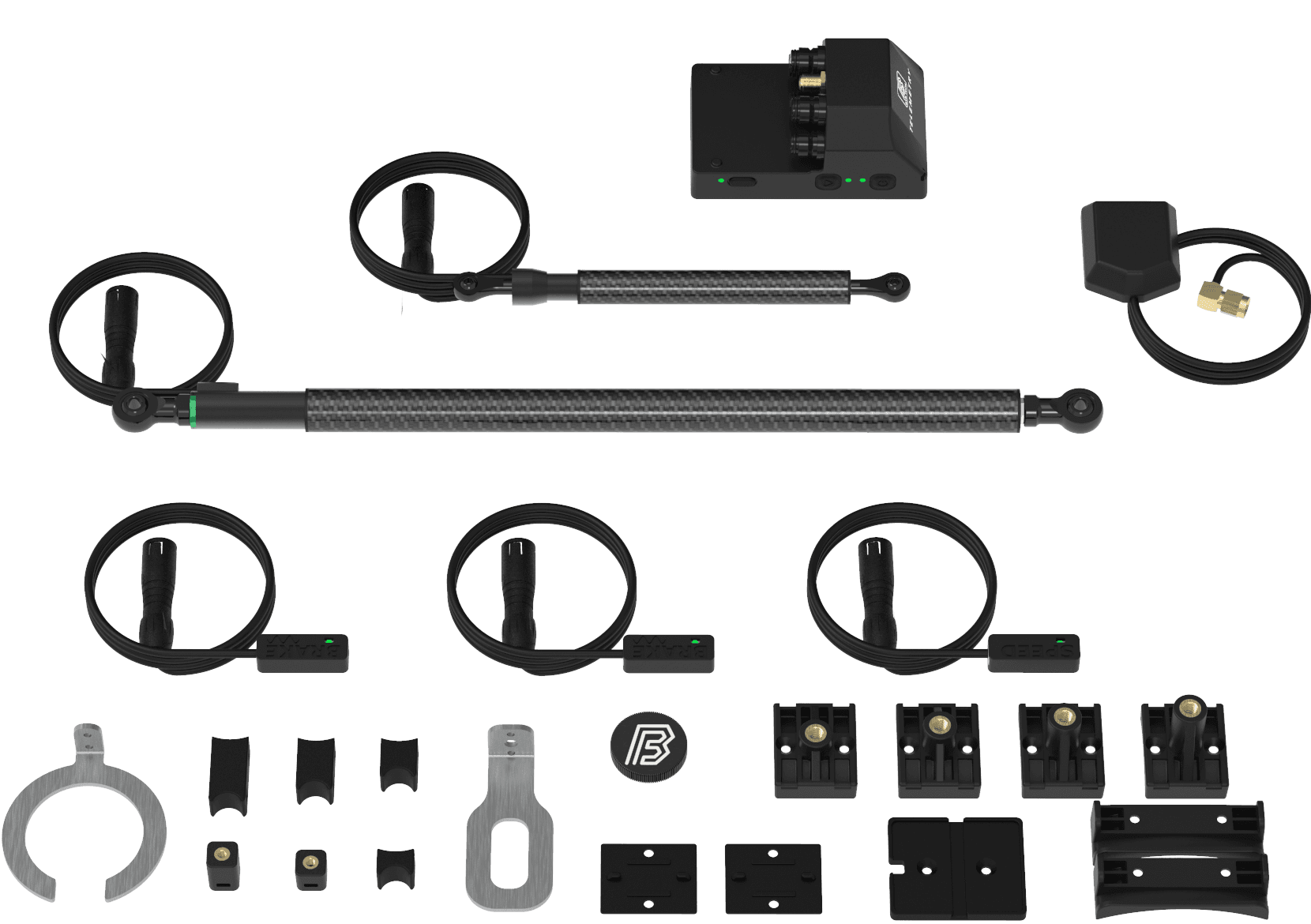

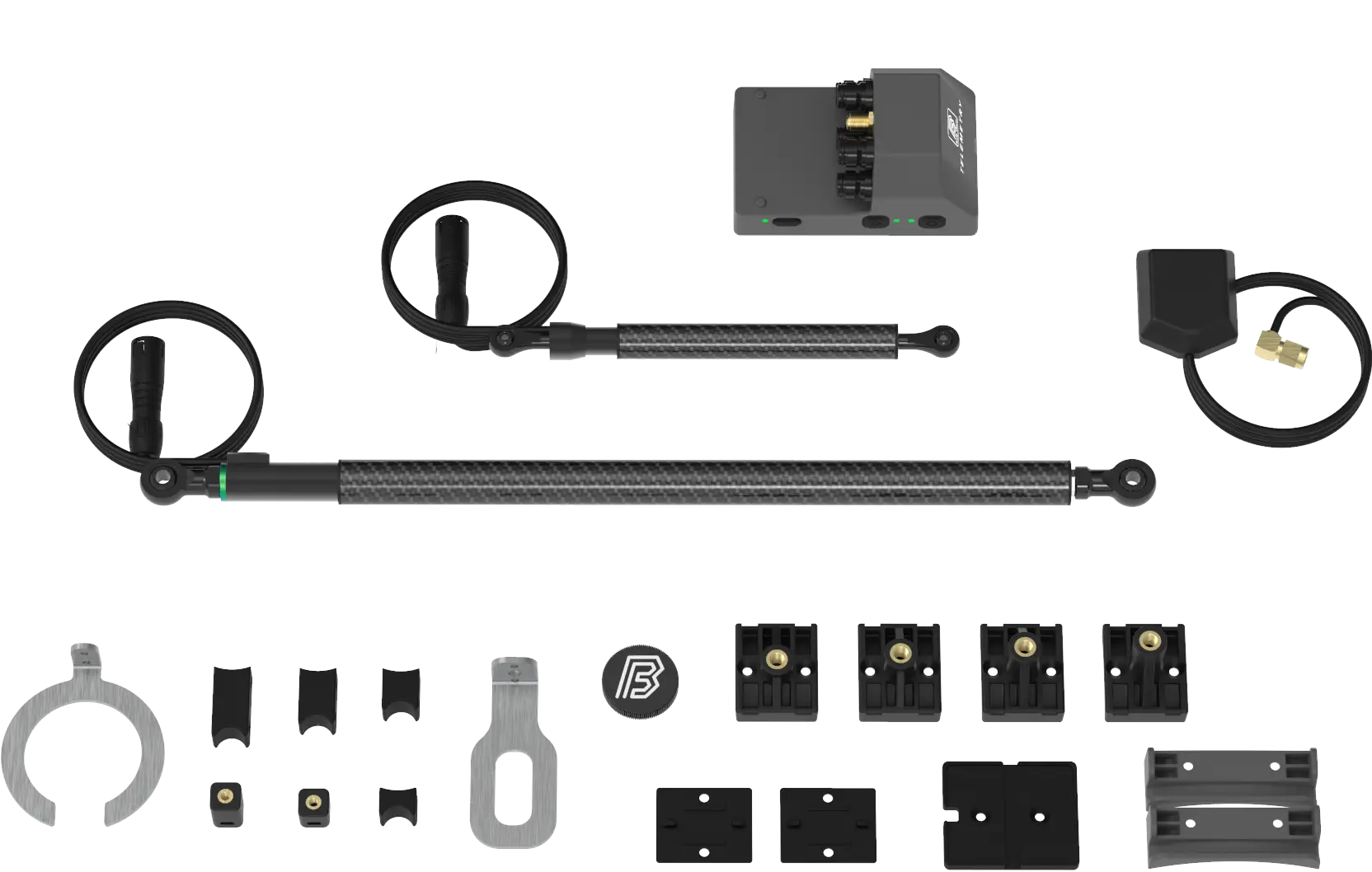

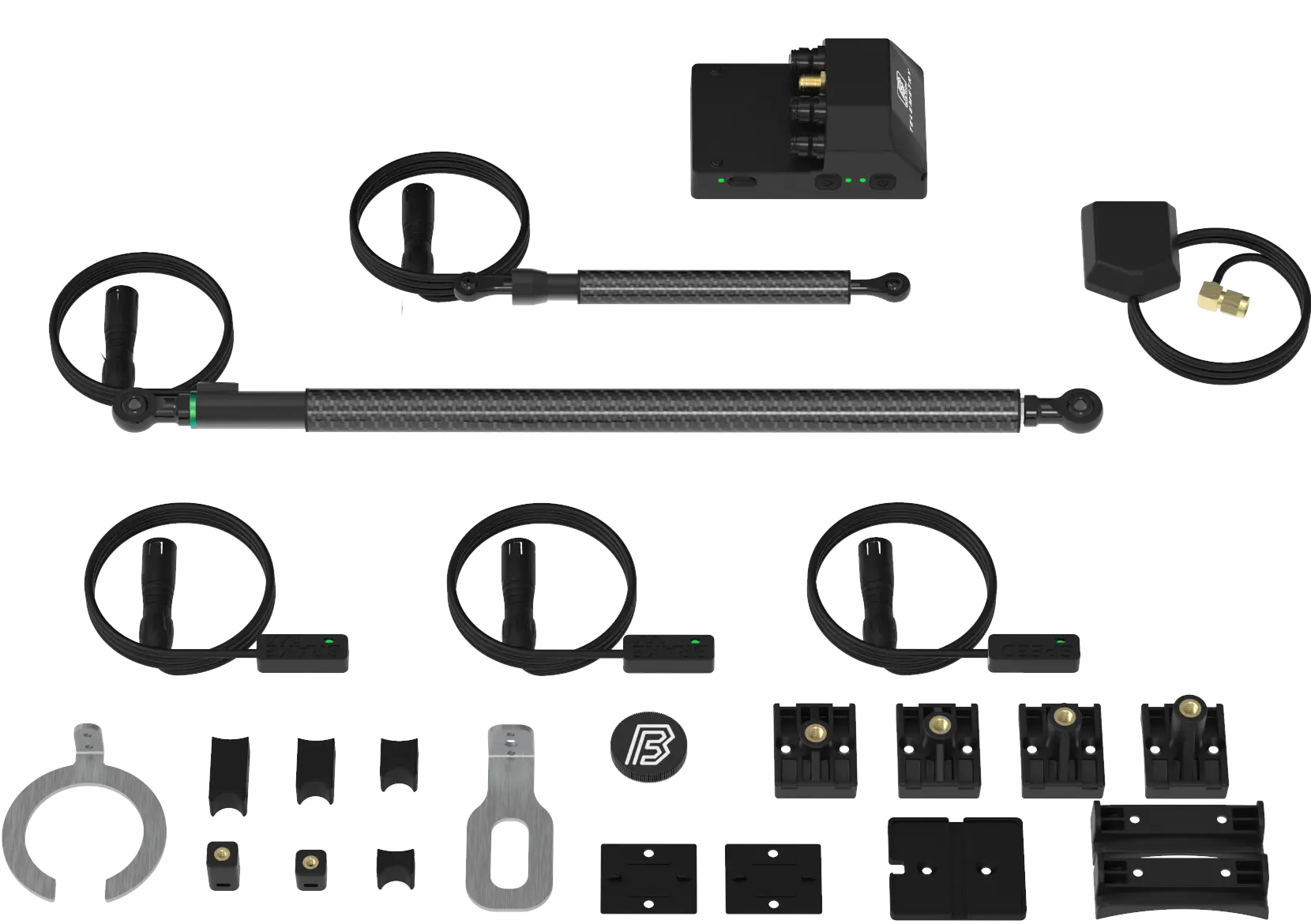

WHAT'S IN THE BOX?
BYB Telemetry box content
